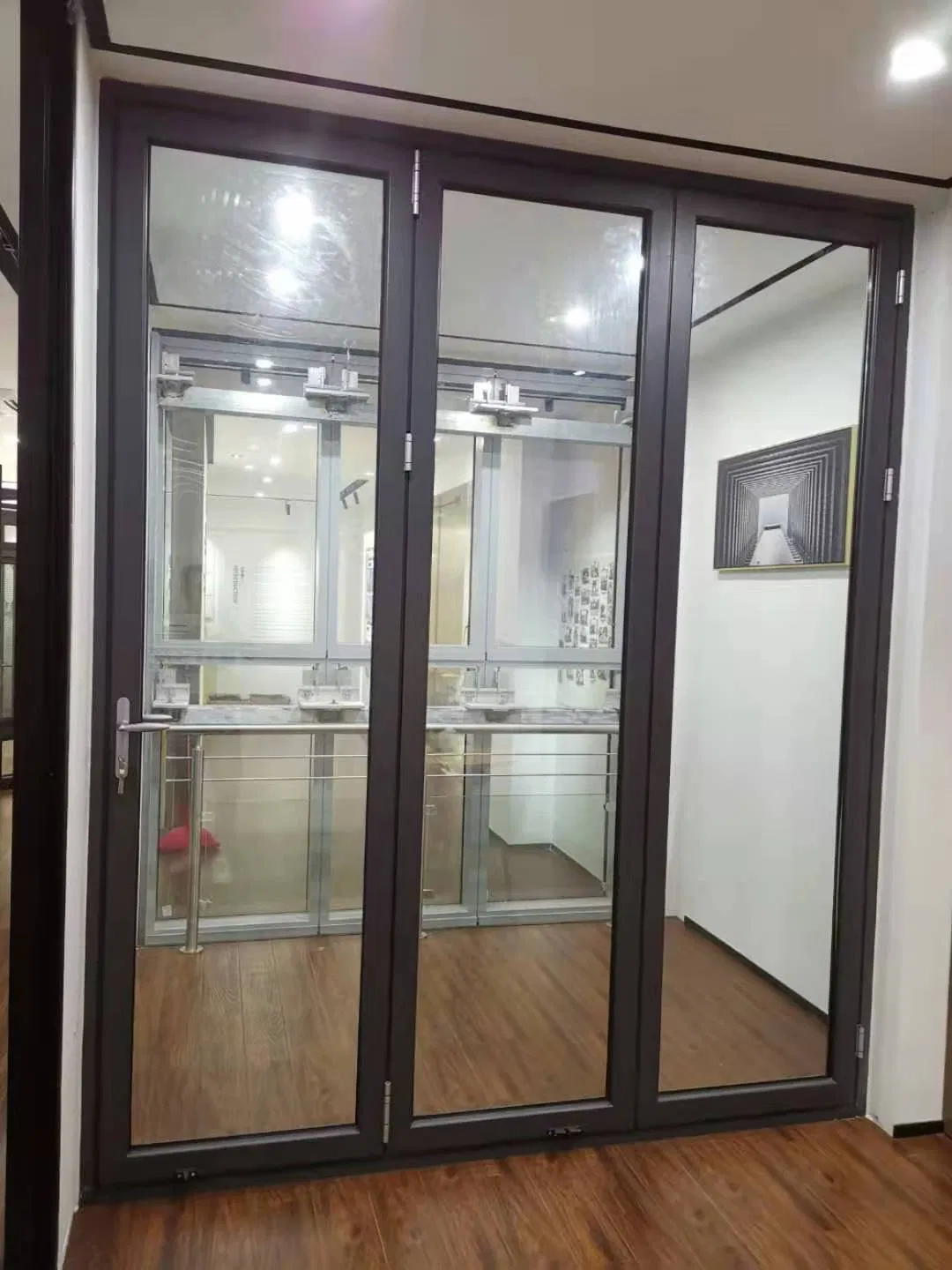

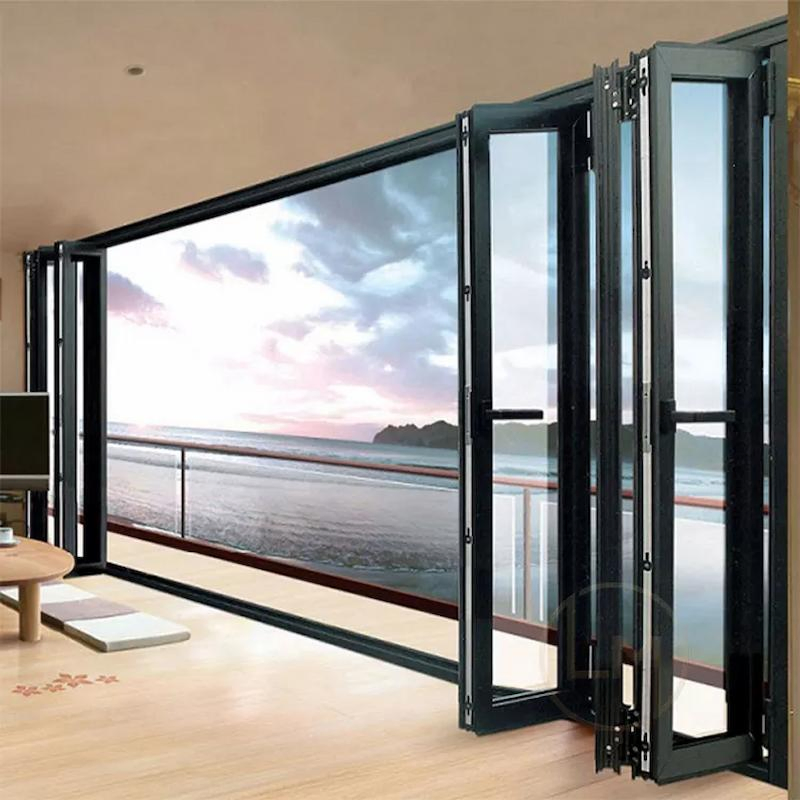

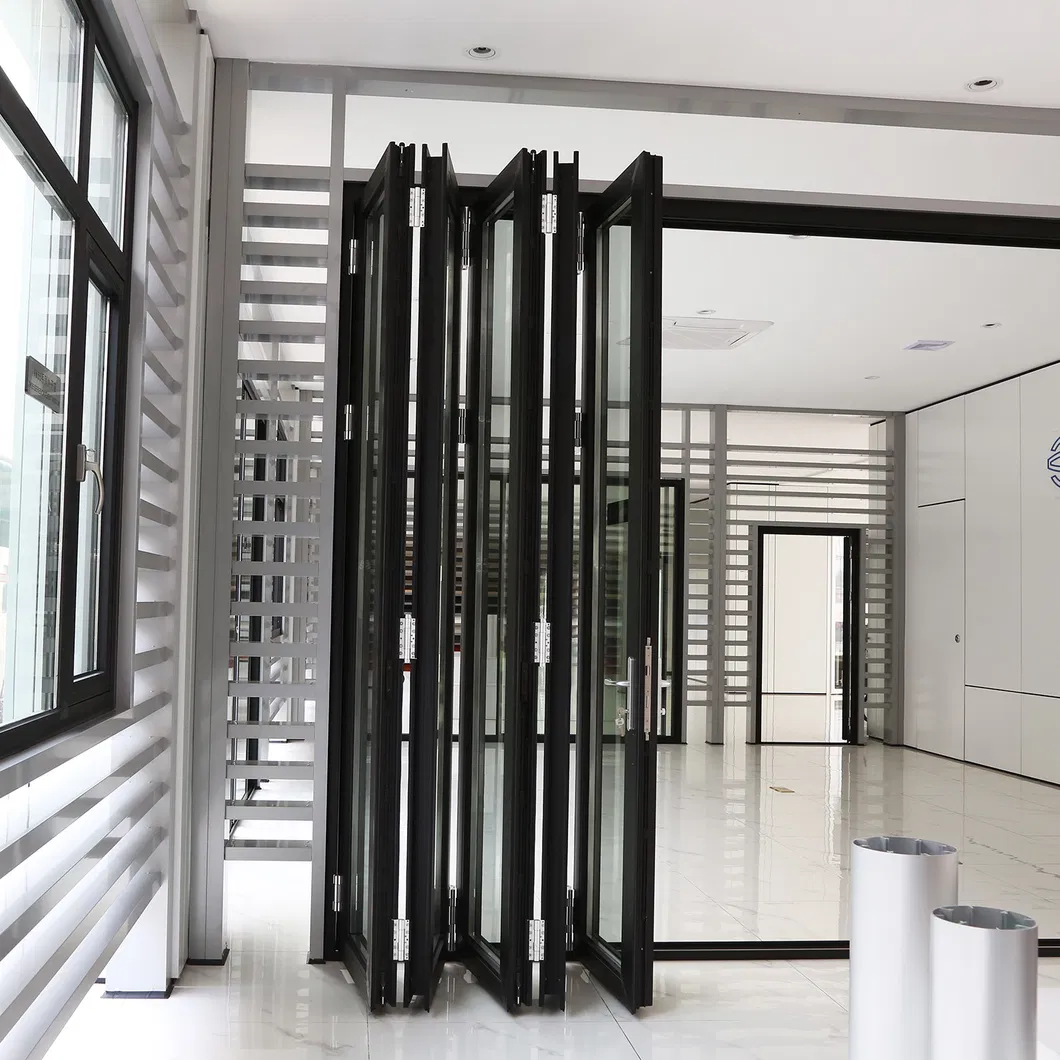

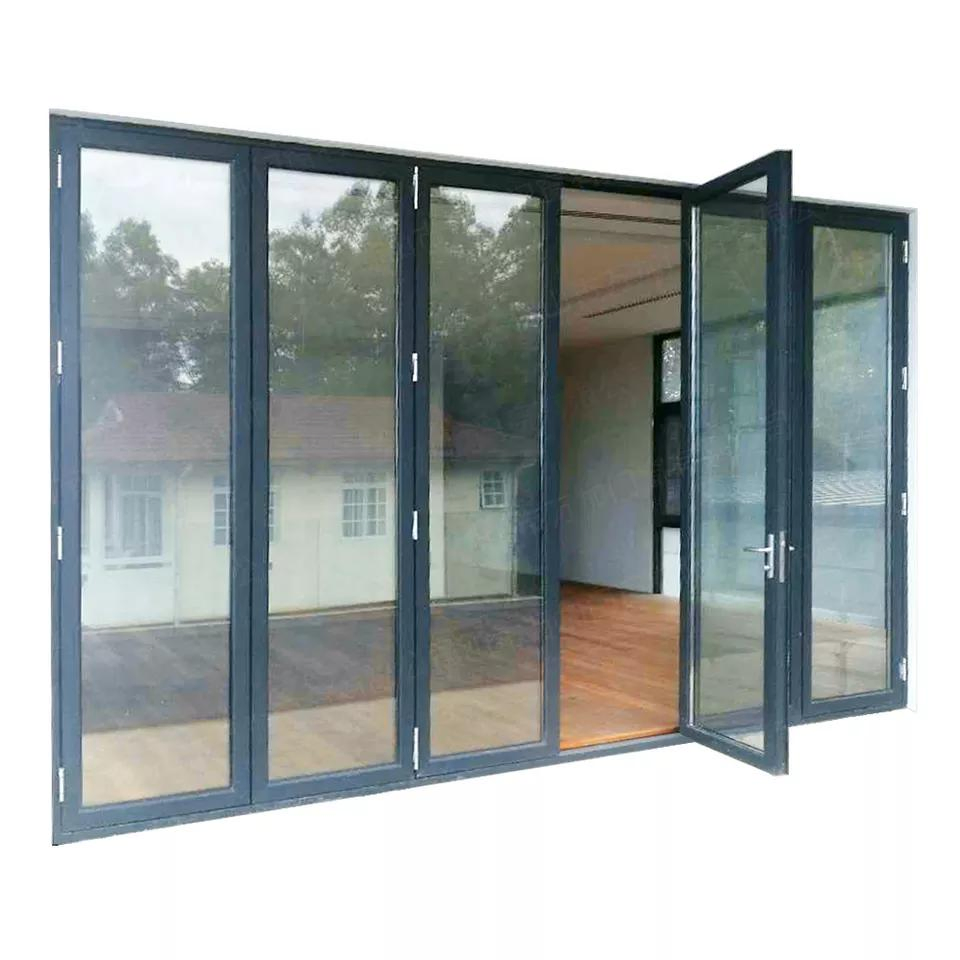

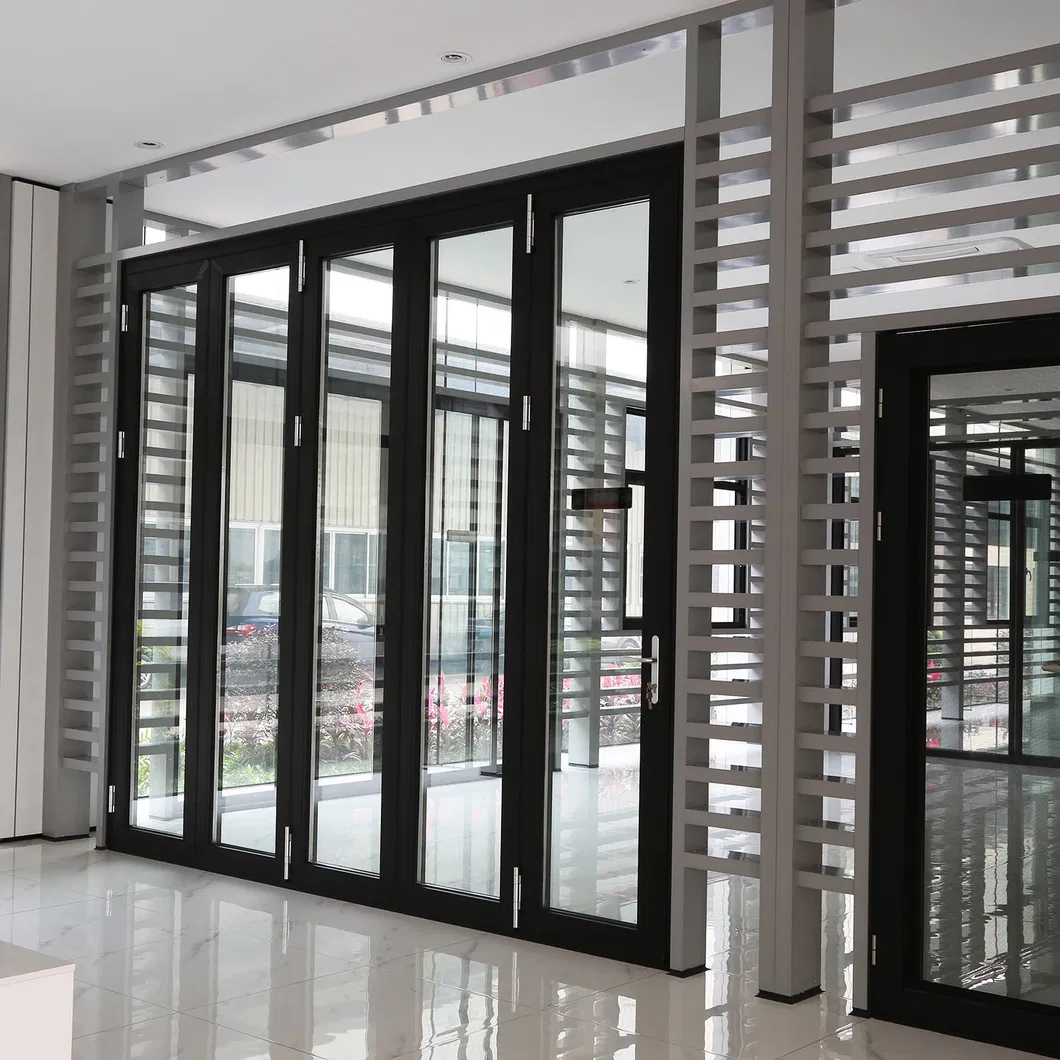

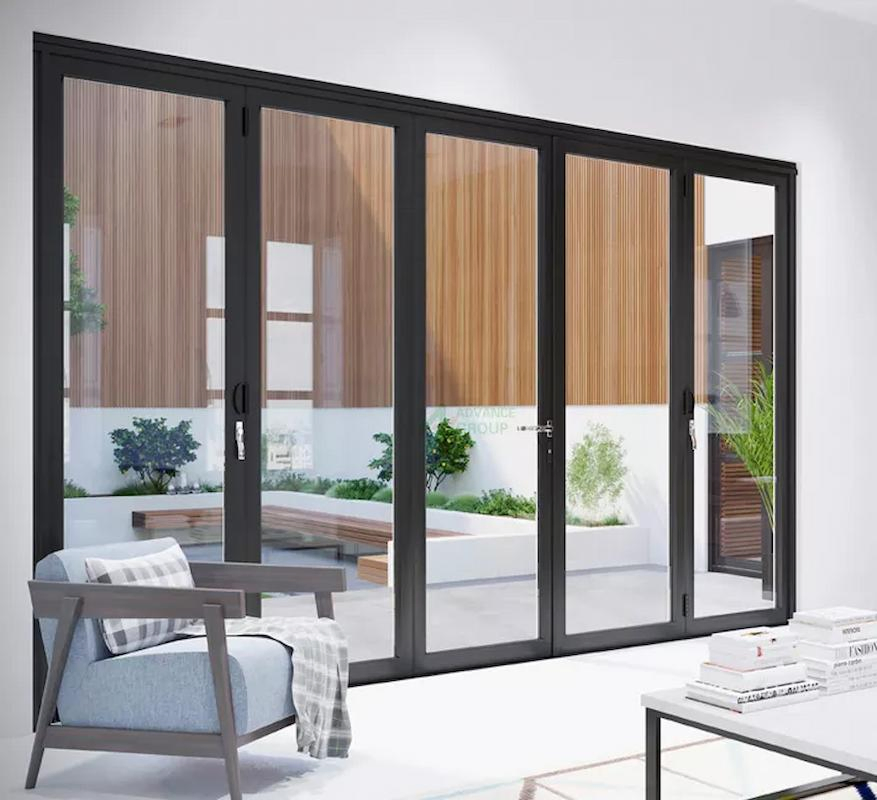

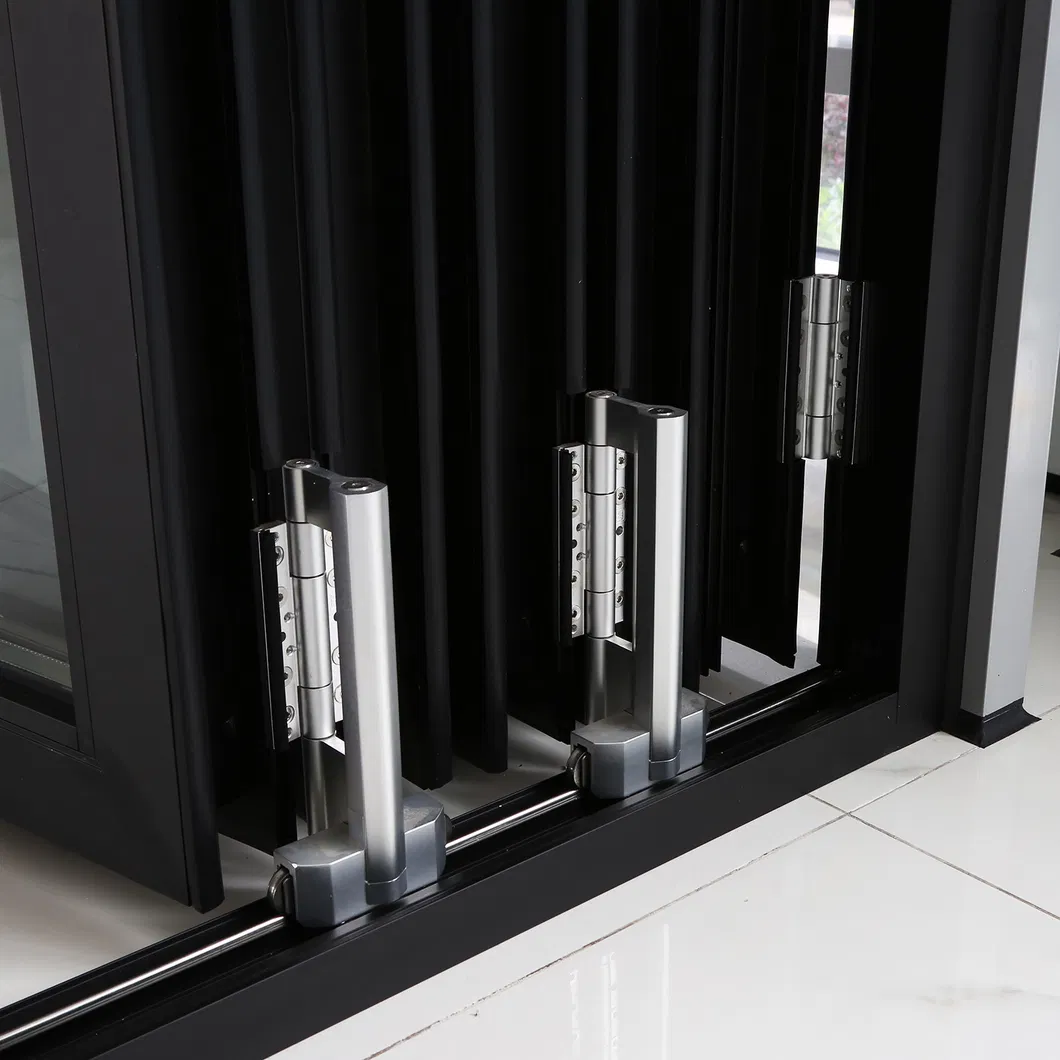

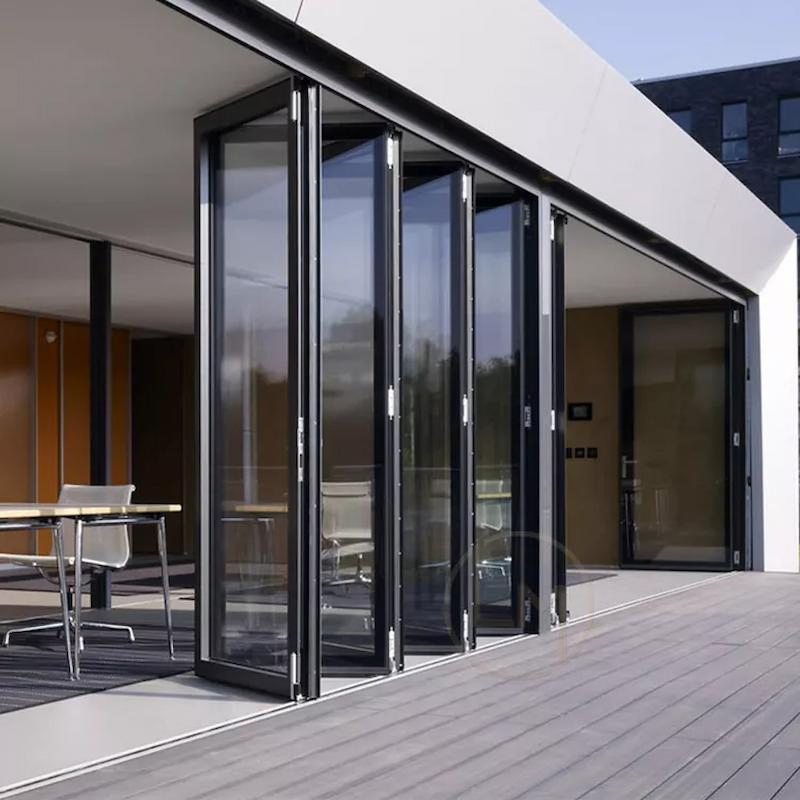

HFD83 is the ultrahigh elevation solution for folding doors with a 60mm sash thickness. Featuring a bottom tracking design with smooth-running rolling wheels, it is suitable for covering large openings. It supports an unlimited number of sashes, each with a maximum height of 6.0m and 250KG load-bearing rollers.
| Performance Ratings | ||||
|---|---|---|---|---|
| Heat Preservation | Sound Insulation | Watertight | Airtight | Wind Load |
| 6+12A+6 Low-E 2.3-2.8 (Level 5/6) |
35DB Level 4 |
500PA Level 5 |
Level 5 | 4.1KPA Level 7 |
| Dimension Parameters | |||
|---|---|---|---|
| Sash Width/Height | Visible Width/Height | Aluminum Width | Glass Thickness |
| Width: 600-1100mm Height: 1920-6000mm Weight: 150-250kg |
Frame Width: 80mm Sash Width: 84mm |
Frame Depth: 92mm Sash Depth: 83mm |
SGU: 6-10mm DGU: 19-35mm |

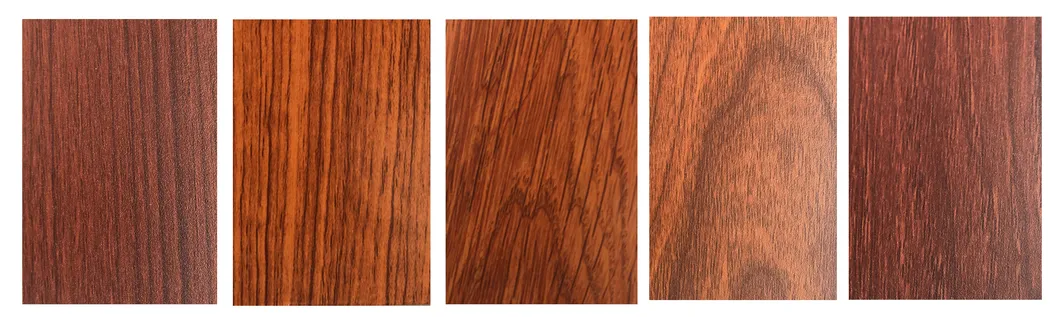

Available in Powder Coating, Anodized, and Wood Grain Finishes to match any architectural style.
| Alloy Type | Extrusion Diameters | Casting Lines | Extrusion Lines | Coating Lines |
| 6063/6061-T4,5,6 | 80mm-300mm | 2 Lines | 14 Lines | Vertical & Automatic |
| Factory Area | Annual Output | Staff/R&D | ||
| 1800 Acres | 100,000 Tons | 650 Members / 25 R&D | ||

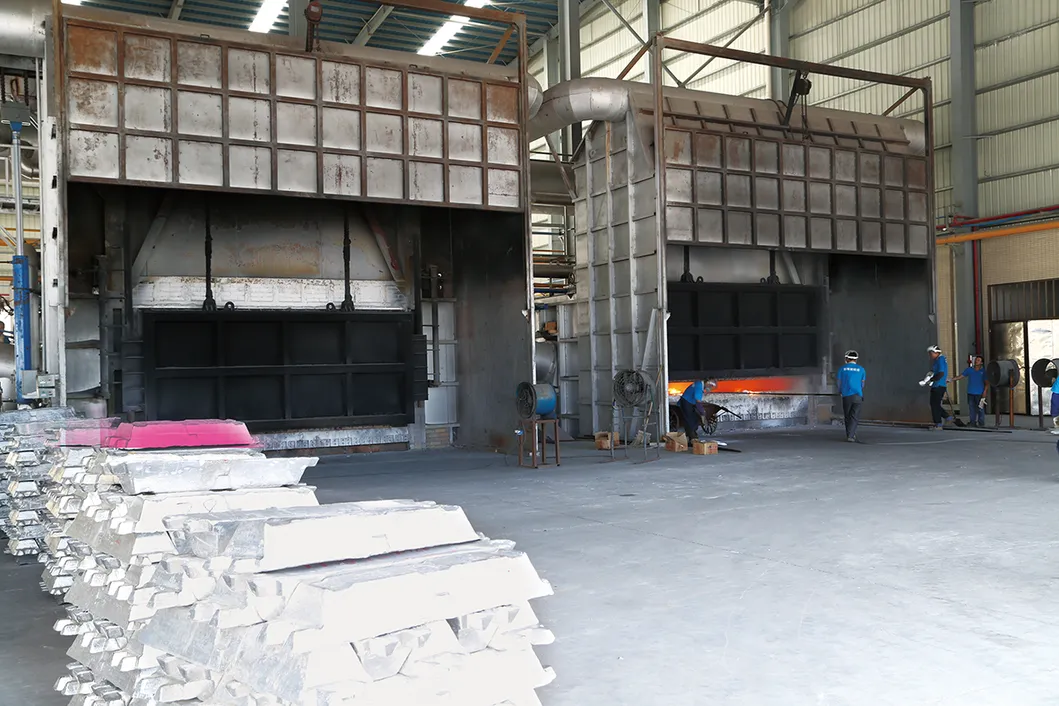

Billet Casting

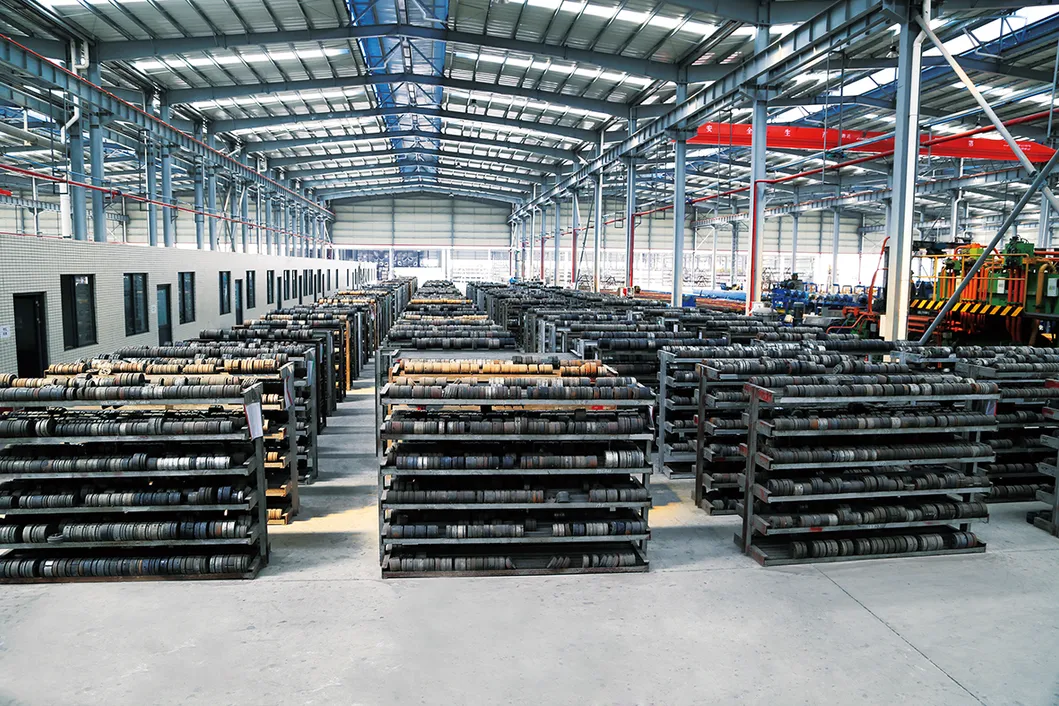

Dies Workshop

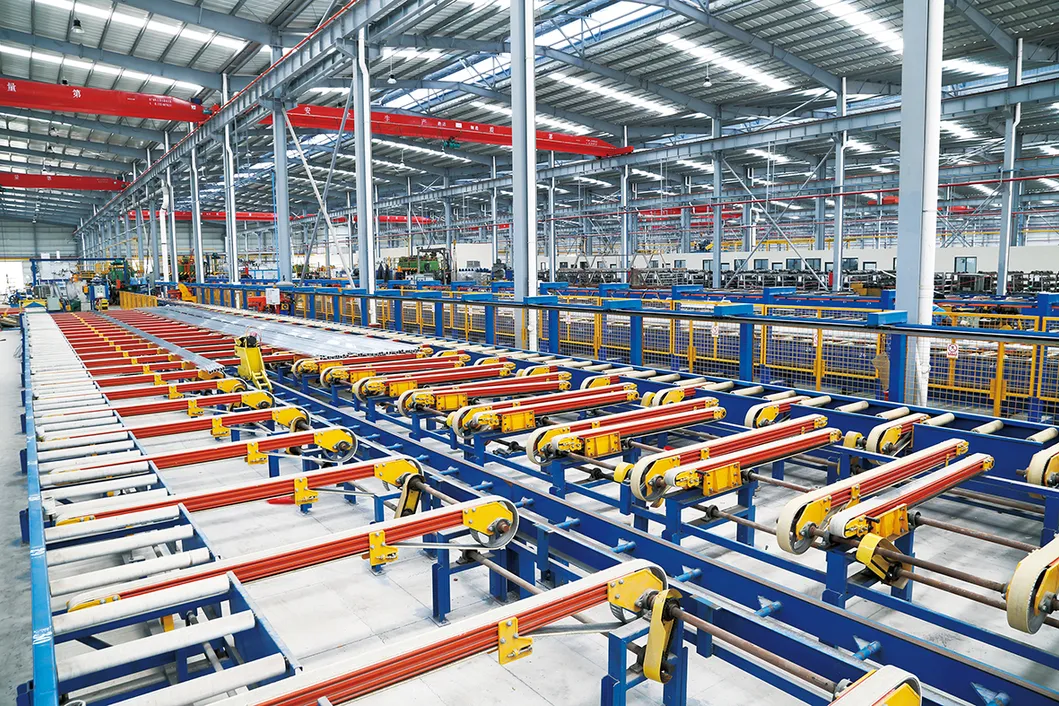

Extrusion Line

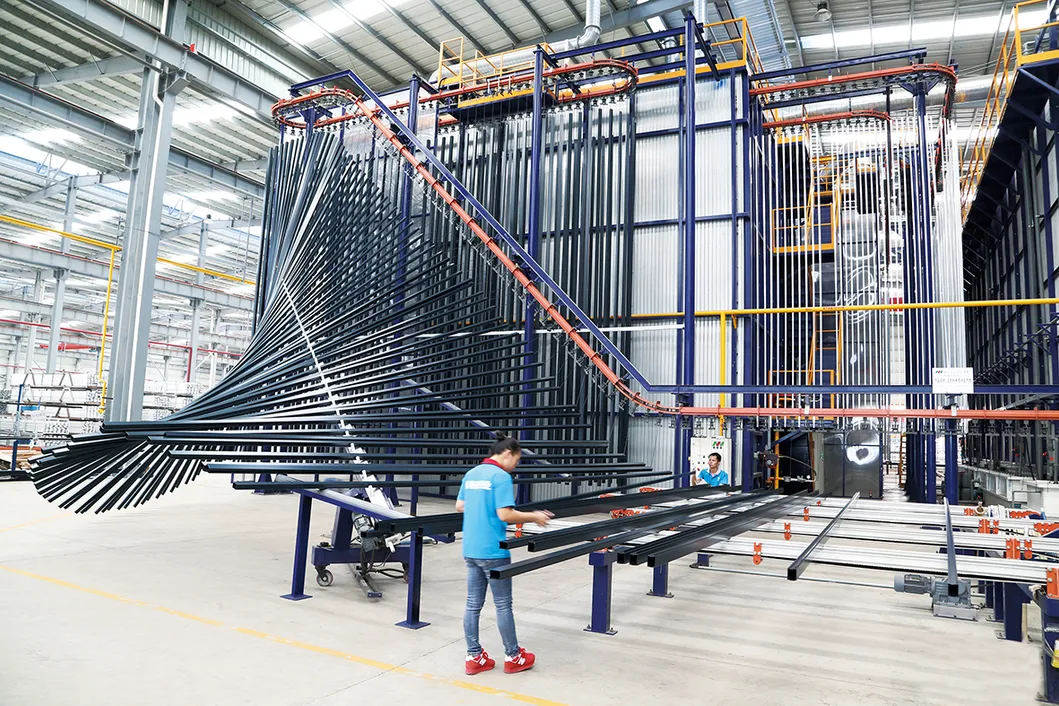

Powder Coating

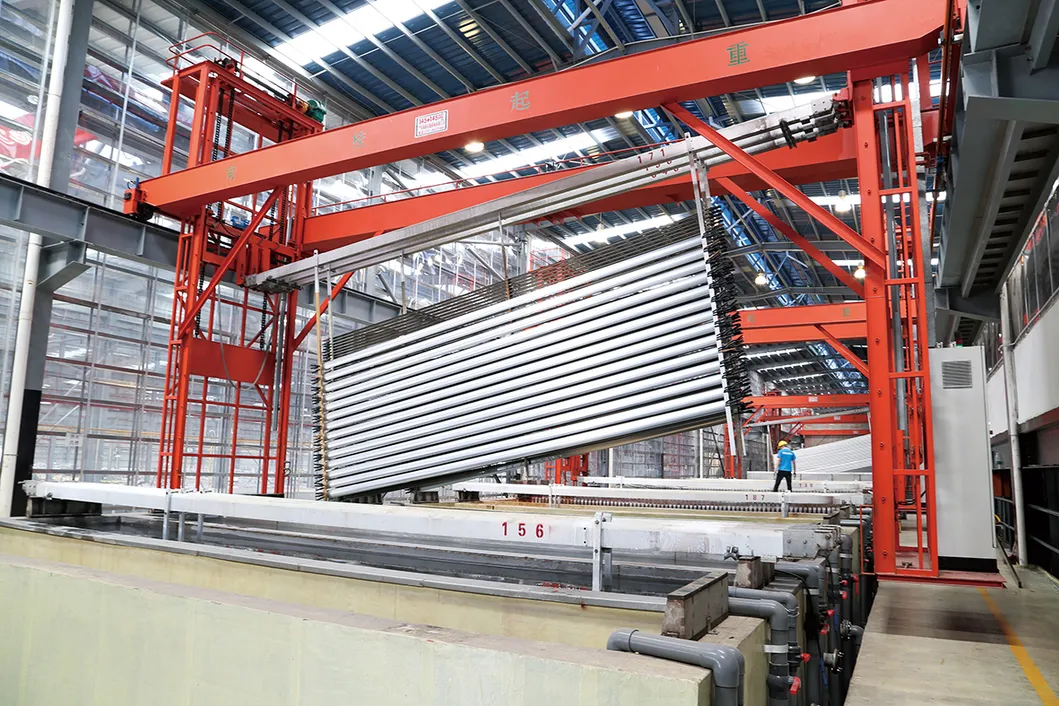

Automatic Anodized
Professional suggestions for engineering and design needs, providing solutions for complex projects.
Wind load calculations, façade optimization, and detailed installation guides.
Developing new windows and doors systems with high-quality accessories to meet market demands.
