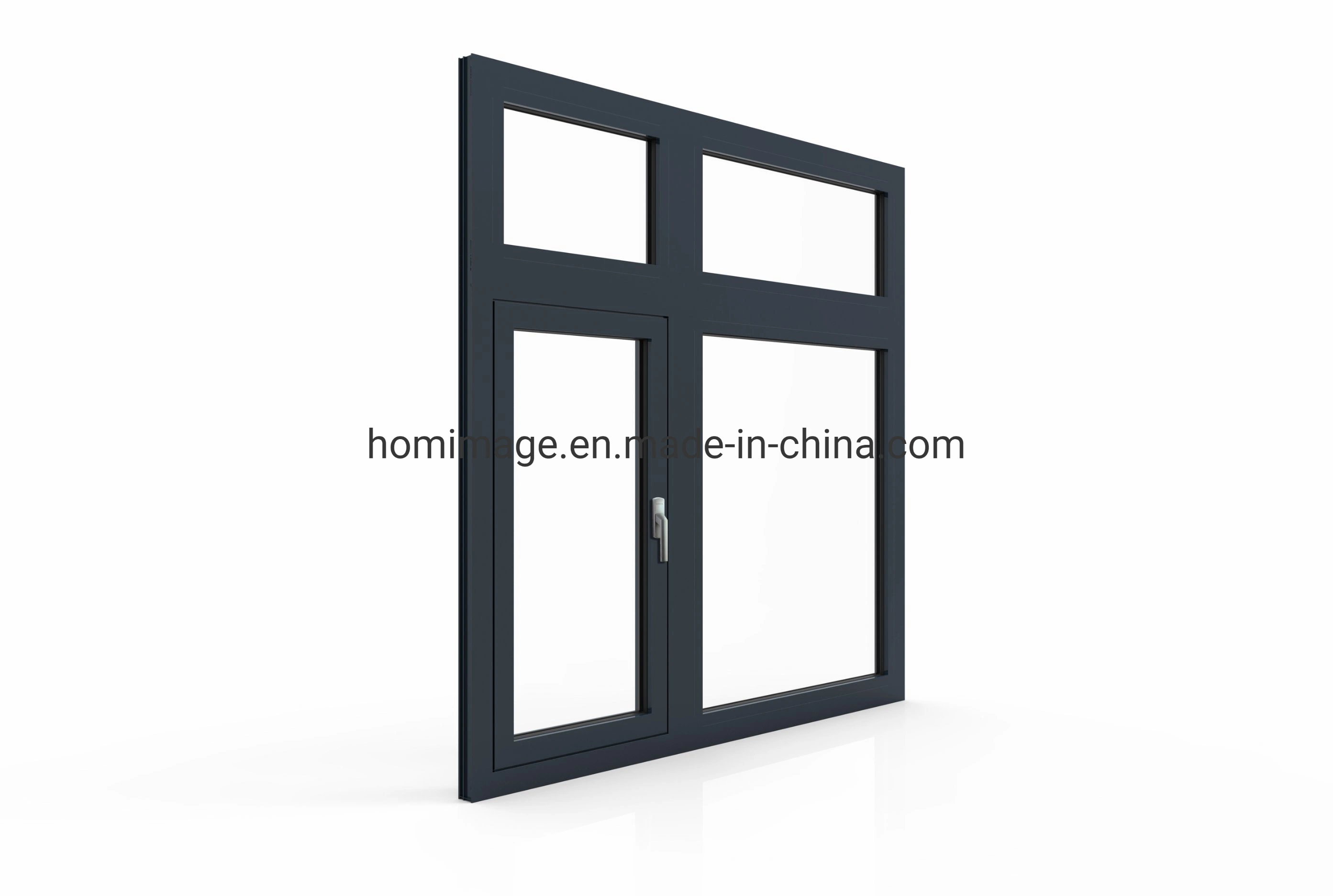

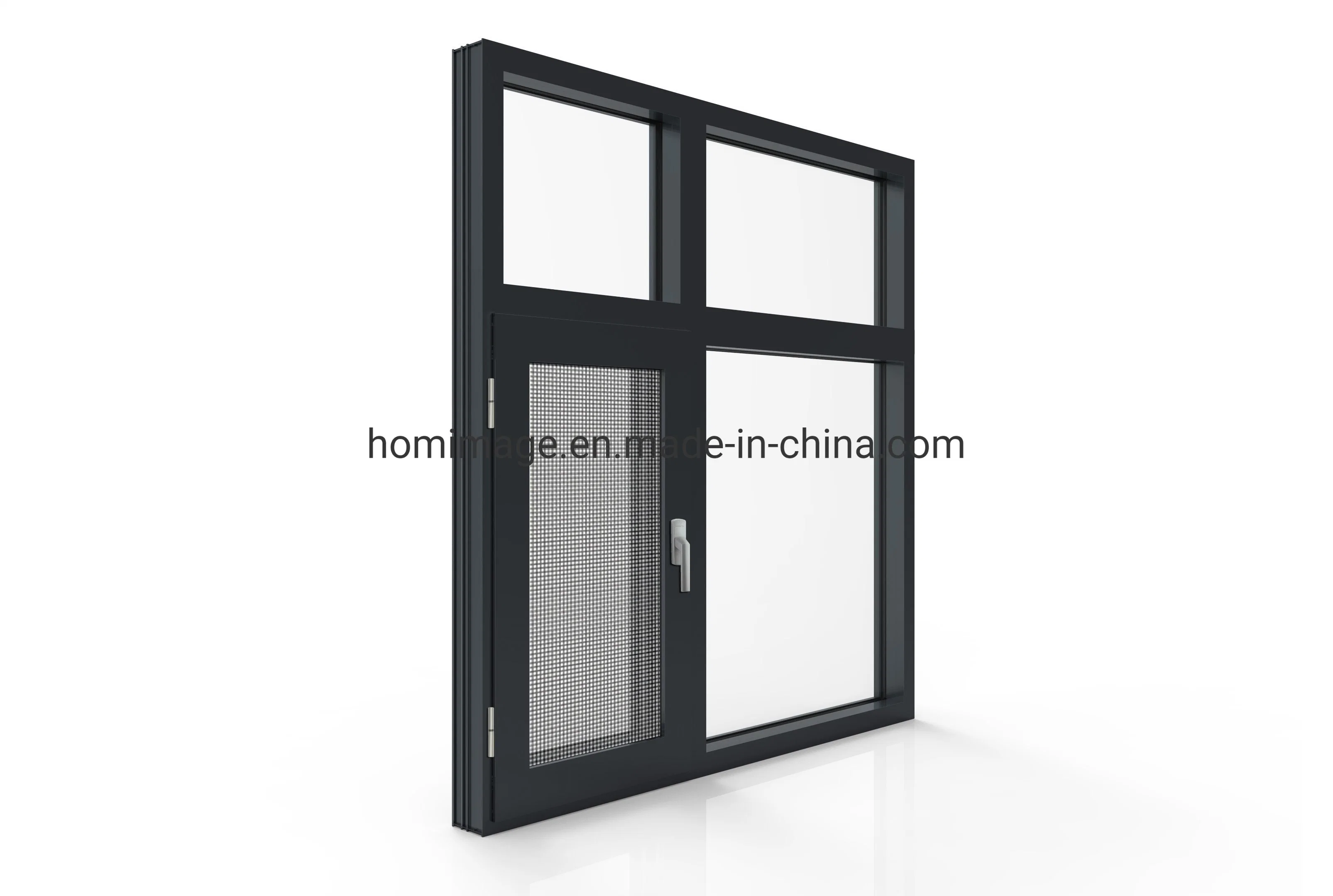

Hw49/100 Aluminum Casement Window/Aluminium Double Glass Window with Steel Fly Screen

1 / 5

Hw49/100 Aluminum Casement Window/Aluminium Double Glass Window with Steel Fly Screen

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Info

Model NO.HW49/100

Frame MaterialAluminum Alloy

Screen NettingSteel

StyleModern

Opening PatternHorizontal

AirtightLevel 6

Watertight500PA

Windload4.1kpa

SurfacePowder Coating/Anodized/PVDF

GlassClear/Frosted/Low-E

Product Description

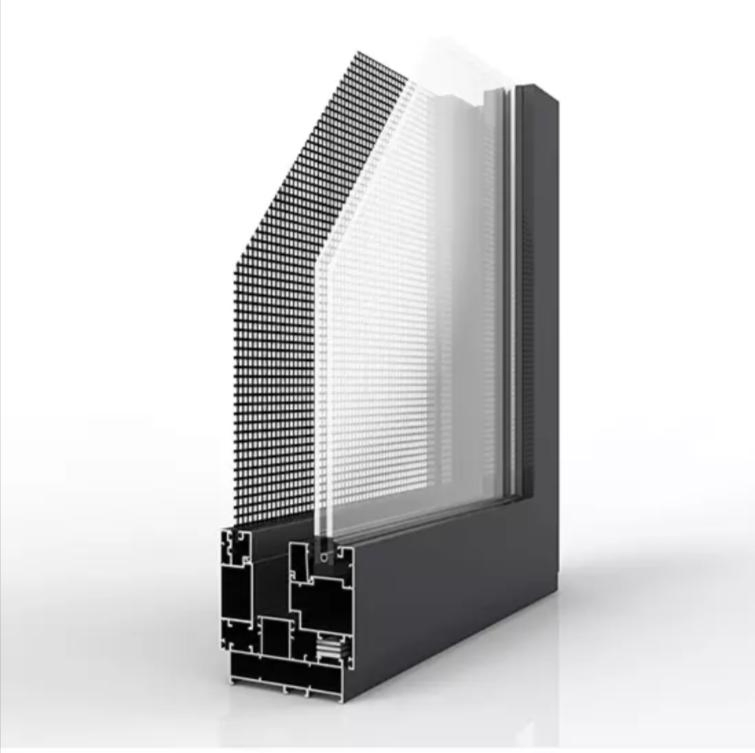

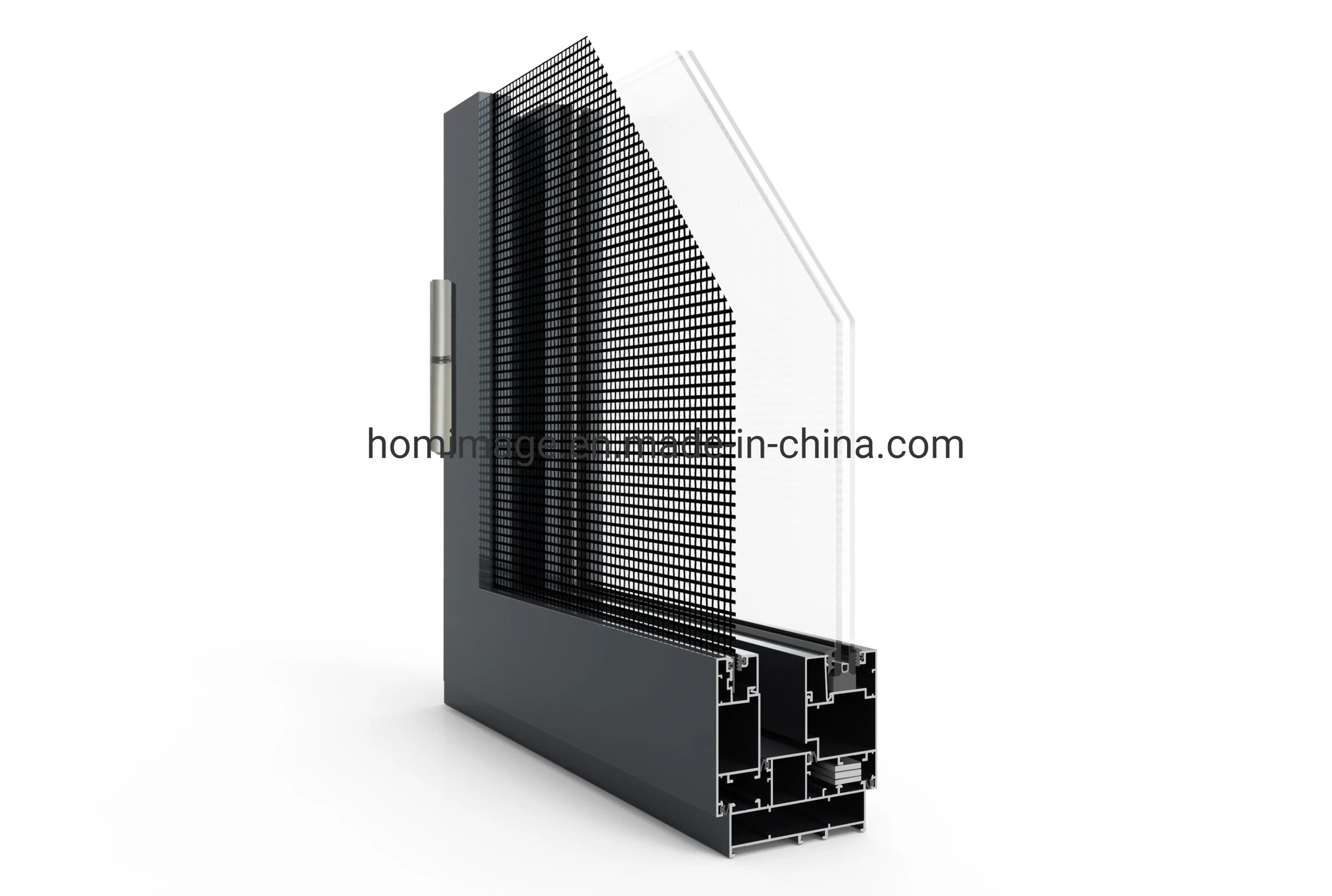

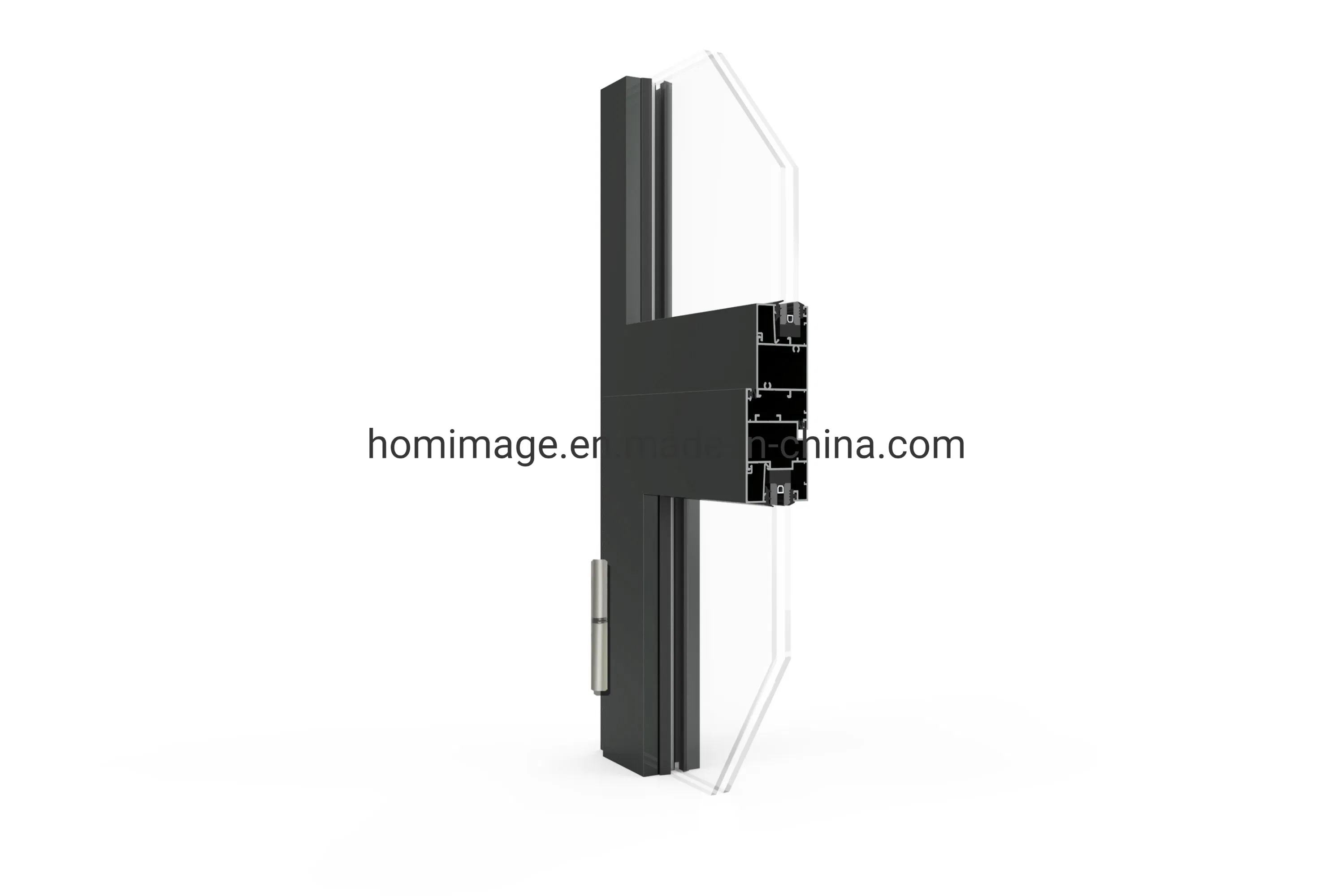

HW49/HW100 series Casement Window

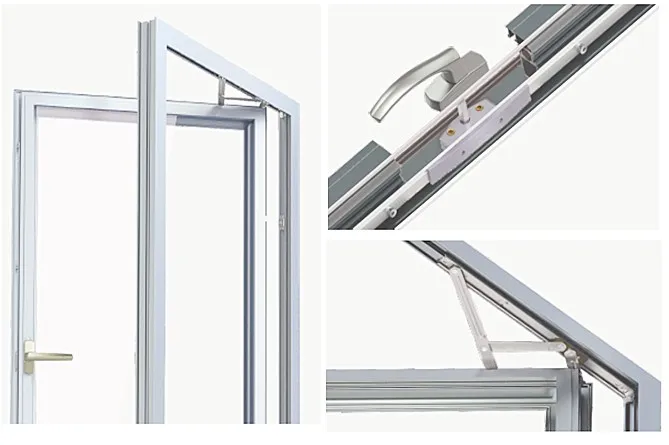

The HW49/HW100 series is an elegant casement system designed for both outside and inside opening. It offers versatile multi-opening ways including outside opening, inside opening, awning, and tilt-turn options.

Inward side glass bead enhances security for low buildings and simplifies safety installation for high-rises.
Innovative drainage design ensures superior water tightness performance.
Available in two frame thicknesses to provide the most cost-effective solutions for specific requirements.

Performance Specifications

Heat Preservation [W(m2.k)]	Sound Insulation (DB)	Watertight (Pa)	Airtight Performance	Wind Load (KPA)
6+12A+6 Low-E 2.3-2.8 (Level 5/6)	35DB Level 4	500PA Level 5	Level 6	4.1KPA Level 7

Technical Parameters

Sash Range (W/H)	Visible Width/Height	Aluminium Depth	Glass Thickness
W: 300-800mm H: 300-1800mm Weight: 45kg	HCW49: Frame 51mm / Sash 74mm HCW100: Frame 49mm / Sash 74mm	HW49: 49mm HW100: 100mm	SGU: 4-10mm DGU: 14-35mm

Powder Coating & Anodized Finishes

Factory Production Capacity

Aluminium Alloy	Extrusion Diameters	Billet Casting	Extrusion Line	Coating Line	Anodized Line
6063/6061-T4,5,6	80mm-300mm	2 Casting Lines	14 Extrusion Lines	1 Vertical Line	1 Full Auto Line

Workshop Overview

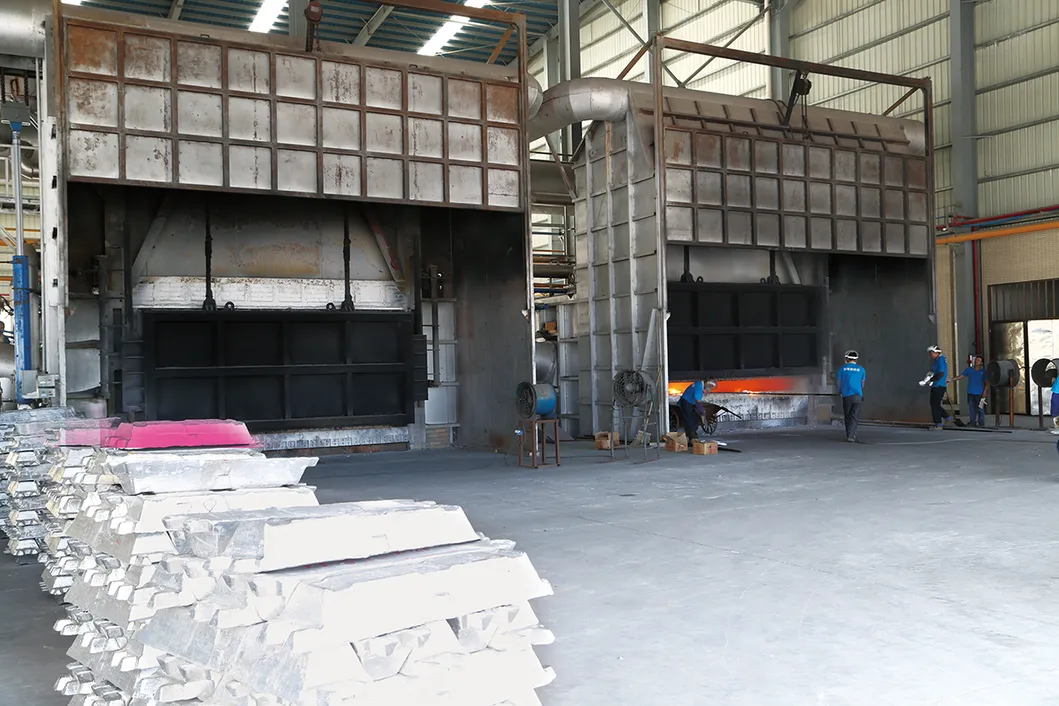

Billet Casting

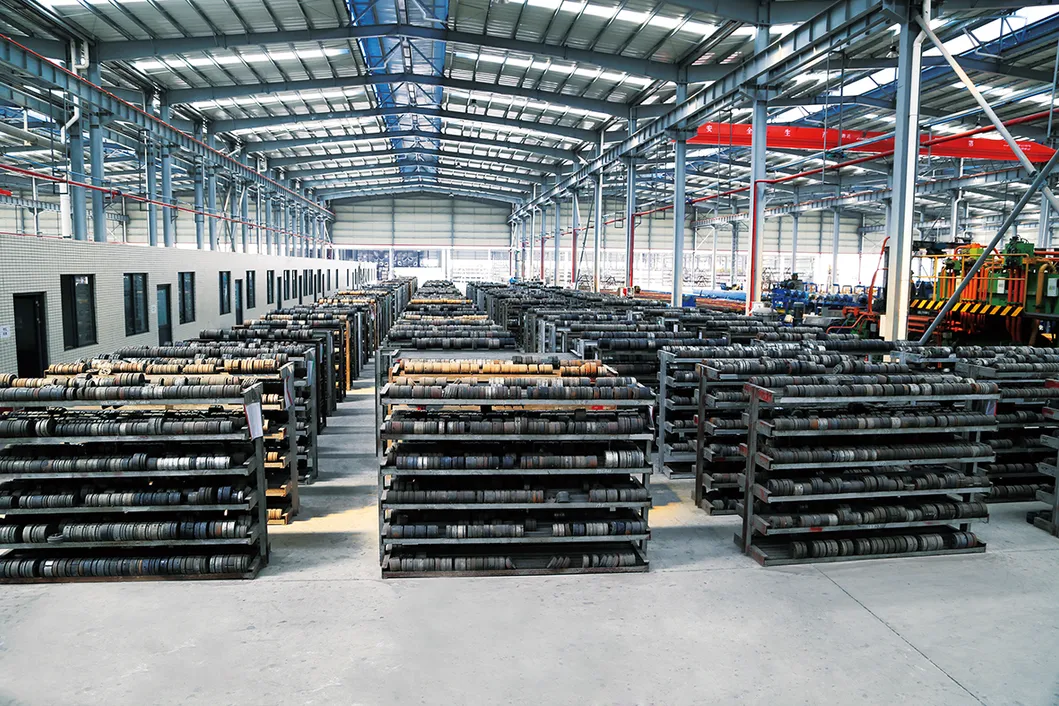

Dies Workshop

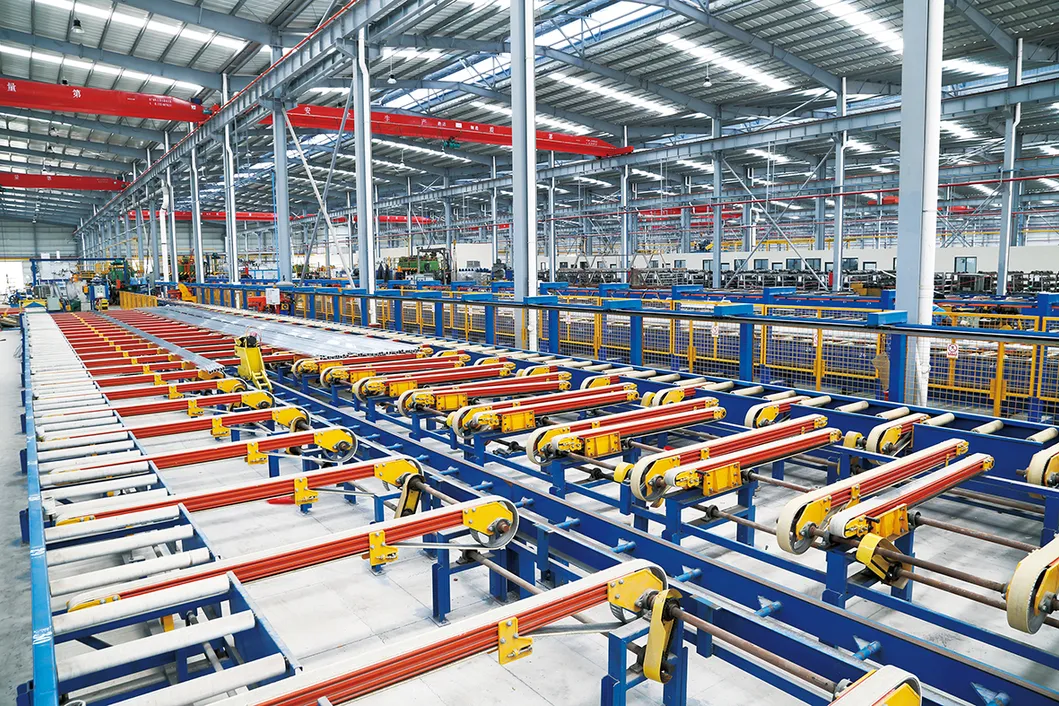

Extrusion Workshop

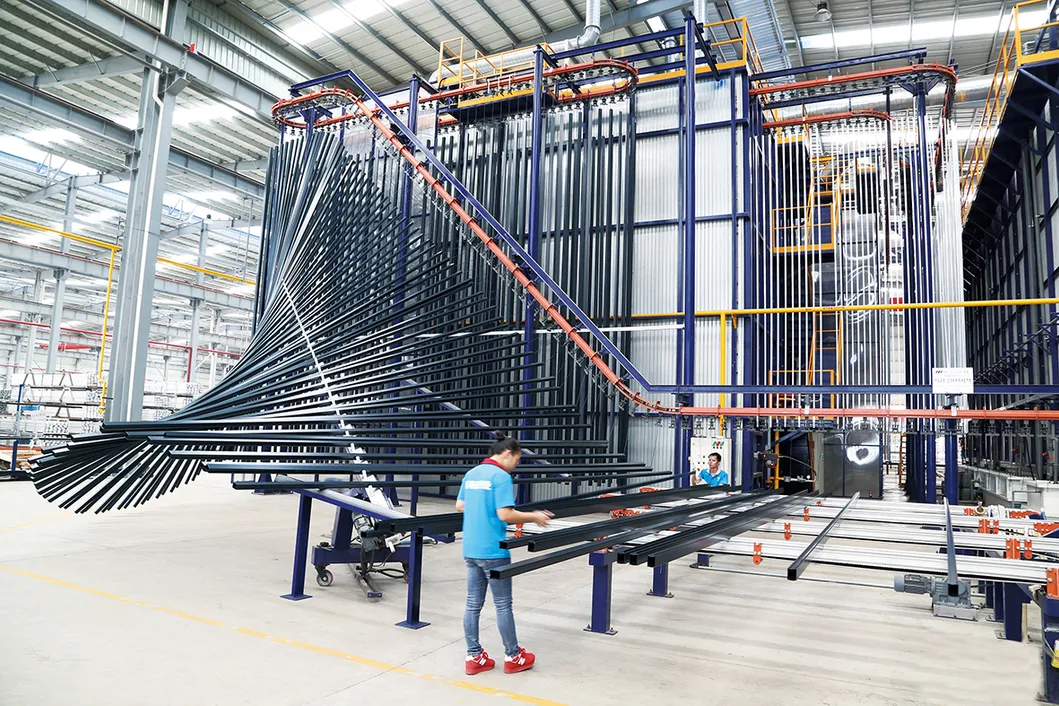

Powder Coating

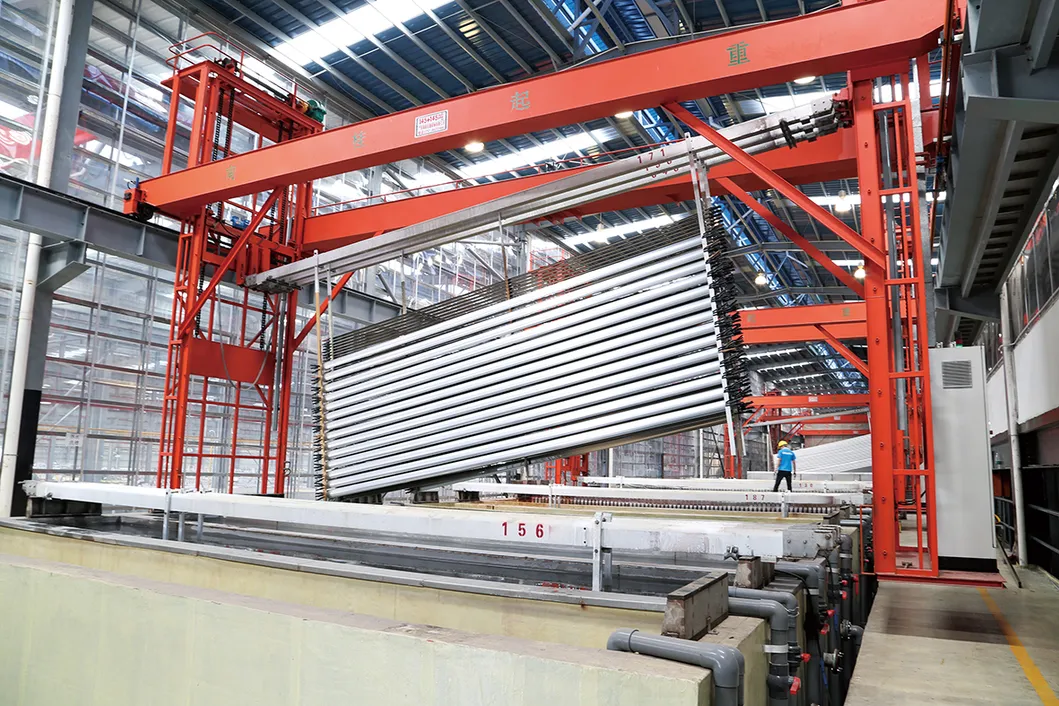

Full-Automatic Anodized

Our Range & Services

Products Offered

Aluminium profiles & Casement Windows
Sliding Doors & Windows
Unitized Curtain Walls & Shopfronts
Sun rooms & Partitions
Balcony railings & Structural Glazing
Aluminium cladding & Formworks

Services Offered

Customization: Professional suggestions for engineering and design needs across complex projects.

Technical Support: Wind load calculations, facade optimization, and installation guidance.

System Design: Market-driven development of new window and door systems with matching accessories.

Frequently Asked Questions

Are you a manufacturer or a trading company?

We are a professional aluminum manufacturer with over 30 years of experience in the industry.

What is the standard delivery time for orders?

Generally, the delivery time is between 15-20 workdays after receiving the payment confirmation.

Do you provide samples and what is the MOQ?

Yes, we provide free die samples for approval. The Minimum Order Quantity (MOQ) typically ranges from 8-10 tons.

What are your accepted payment terms?

We require a 30% deposit upon order confirmation. The balance is payable via T/T before delivery, against a B/L copy, or via L/C at sight.

What types of surface finishes can you apply to the windows?

We offer various finishes including Powder Coating, Anodized, Electrophoresis, PVDF, and Wooden Finish.

Which glass options are available for the HW49/100 series?

Options include Clear, Frosted, Reflective, and Low-E glass, with thickness ranging from 4mm to 35mm for single or double glazing.
